Multi-ch(4x4) 4K60 Video Processor : MS1827

Overview

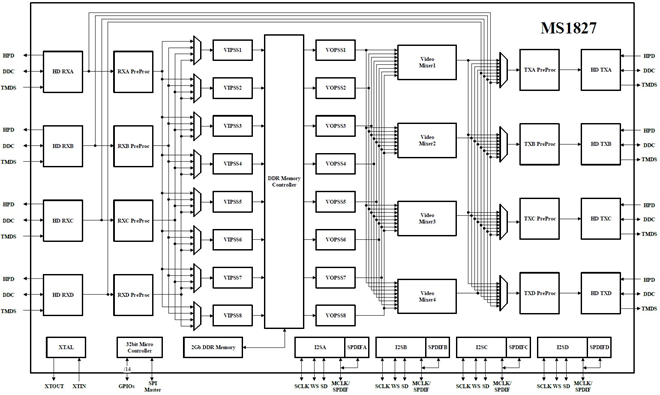

The MS1827 is a multifunction audio/video processor integrating four independent HD audio/video inputs, four independent HD audio/video outputs, eight video-scaling paths, four OSD engines, 2 Gb on-chip DDR SDRAM, and a 32-bit controller. It targets multiview displays, video-wall and stitching systems, matrix switchers, and other multi-channel audio/video products.

Typical Applications

• Multiview processors and multi-channel video stitching systems
• 4K video matrices and audio/video switchers
• Video-wall controllers and display processors
• Multi-channel systems requiring OSD, scaling, rotation, or frame-rate conversion
• Audio/video processors requiring multi-channel audio mixing and port swapping

Audio/Video Inputs

• 4 independent video inputs supporting up to 4K@60Hz; DVI 1.0 compatible
• HDCP 2.3 and HDCP 1.4 video decryption
• Extended VESA and CEA-861-F video formats
• RGB, YUV 4:2:2, and YUV 4:4:4 color spaces with RGB, YUV709, and YUV601 colorimetry
• 8-, 10-, 12-, and 16-bit color depth
• Automatic input-resolution detection, input-characteristic error detection, and scrambling decode
• SCDC, programmable EDID, automatic HPD control, manual/automatic EQ, and DDC-channel control
• Audio clock recovery, PCM input-volume control; DSD, DST, and HBR Audio up to 1536 kHz sampling rate
• Up to 8-channel I2S and SPDIF audio at 32–192 kHz sampling rates

Audio/Video Outputs

• 4 independent video outputs supporting up to 4K@60Hz; DVI 1.0 compatible
• HDCP 2.3 and HDCP 1.4 video encryption
• RGB, YUV 4:2:2, and YUV 4:4:4 color spaces with RGB, YUV709, and YUV601 colorimetry
• 8-, 10-, 12-, and 16-bit color depth
• Scrambling, SCDC, automatic HPD detection, and adjustable pre-emphasis
• DSD, DST, HBR Audio, and up to 8-channel I2S and SPDIF audio transport

Video Processing

• Simultaneous deinterlacing of 4 video inputs with interlaced-video output support
• Input-side and output-side color-space conversion
• Up to 8 independent scaling paths supporting enlargement and downscaling to 1/256
• Brightness, contrast, hue, saturation, and sharpness adjustment
• Frame-rate conversion, cropping, solid-color keying, and multiple scene-transition effects
• Horizontal and vertical mirroring; 90°, 180°, and 270° rotation
• Up to 8 overlaid video layers with programmable transparency

OSD (On-Screen Display)

• 4 independent OSD engines
• One OSD window and three highlight windows per engine
• Mixed 1-bit, 2-bpp, and 4-bpp characters with independently programmable font library per engine
• 64 KB programmable font storage per engine, supporting up to 256 × 32×64 1-bpp characters
• Maximum character size: 32 × 64 (H × V) pixels
• OSD-window scaling and 90°, 180°, and 270° rotation
• Programmable foreground, background, and highlight colors; color lookup tables; video blending; fade effects

Digital Audio & Control Interfaces

• 4 configurable input/output I2S ports
• 4 configurable input/output SPDIF ports multiplexed with I2S MCLK pins
• I2S input-volume adjustment and multi-channel audio mixing
• 2 UARTs, 14 GPIOs, 4 external interrupts, and 3 time-multiplexed ADC inputs
• 1 four-wire SPI master for loading code from external SPI Flash
• 1 I2C slave; external SPI Flash programmable through video-input DDC channel
• 2 × 32-bit timers, system tick timer, and watchdog timer
